Pixout

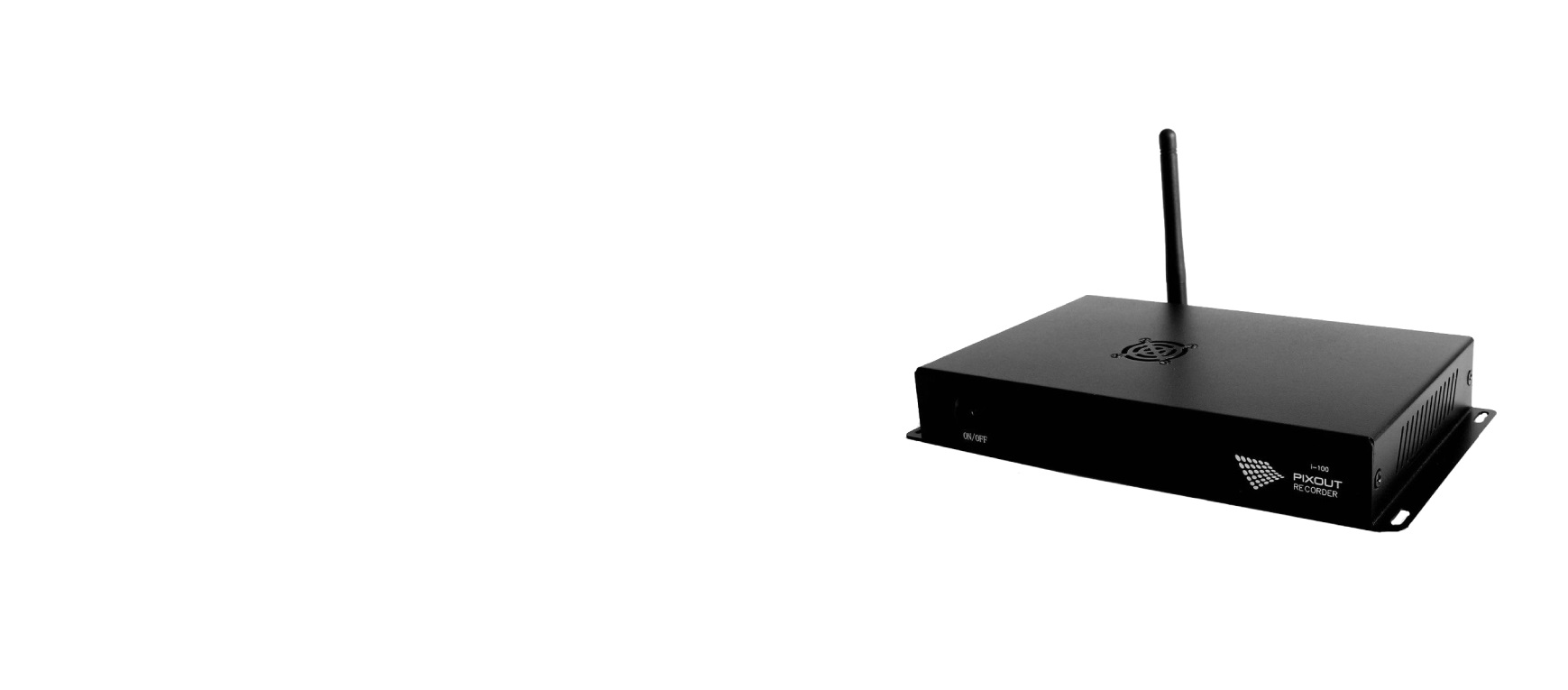

Pixout ArtNet DMX recorder controlling architectural LED lighting

ArtNet DMX Recorder · Playback Controller

Record ArtNet. Play it back anywhere.
No PC required.

Up to 64 universes captured from GrandMA, MADRIX, Resolume or any ArtNet source — then replayed standalone from an IP67 controller you can install outdoors.

Get a Quote → See Pricing Watch 60-sec demo

64

Universes

30fps

Recording

8GB

Onboard cues

IP67

Outdoor-ready

Trusted with the industry's tools

GrandMA 3 MADRIX Resolume MadMapper Chamsys MagicQ Enttec

Overview

From lighting desk to standalone playback in three steps

Connect Pixout to your network, hit Record on any ArtNet source — GrandMA, MADRIX, Mad Mapper, Resolume — and the controller captures every frame to its internal SD storage. Disconnect the desk and the show keeps running, 30 fps, 24/7, with no PC on site.

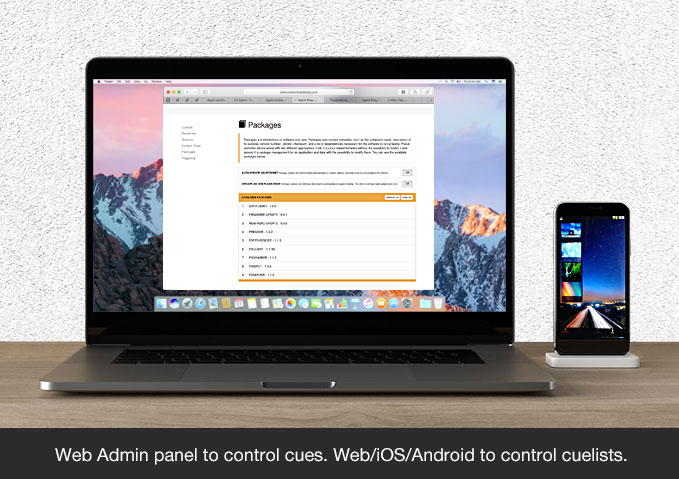

Pixout Controller with display

Features

What's under the hood

Six reasons designers, integrators and OEMs ship with Pixout instead of a PC — see Hardware and Software below for the full spec sheet.

Set-and-forget reliability

No OS to crash, no fan to fail — boots straight into your show, every time.

Outdoor or indoor, your choice

IP67 weatherproof S-100 for façades; rack-mountable I-100 / D-100 for AV racks.

Open integrations — your stack, your rules

REST API, GPIO, MIDI, UDP and ArtTrigger talk to BMS, AV consoles and custom apps.

Web admin + mobile app

Configure from any browser; let the client run scenes from iOS or Android.

Free OTA updates for life

New features and security patches delivered automatically — no truck rolls.

OEM & volume friendly

White-label hardware, DIY firmware variant and tier discounts up to 25%.

Comparison

PC-based playback vs Pixout

A side-by-side look at what changes when you move from a media-server rig to a standalone ArtNet recorder.

PC-based playback

  • Reliability: a dedicated PC must run 24/7 on site
  • Environment: indoor use only — dust, heat and humidity are enemies
  • Cost: recurring software licences and dongle replacements
  • Maintenance: OS patches, antivirus pop-ups and reboots interrupt the show
  • Control: remote access requires VPN and IT involvement

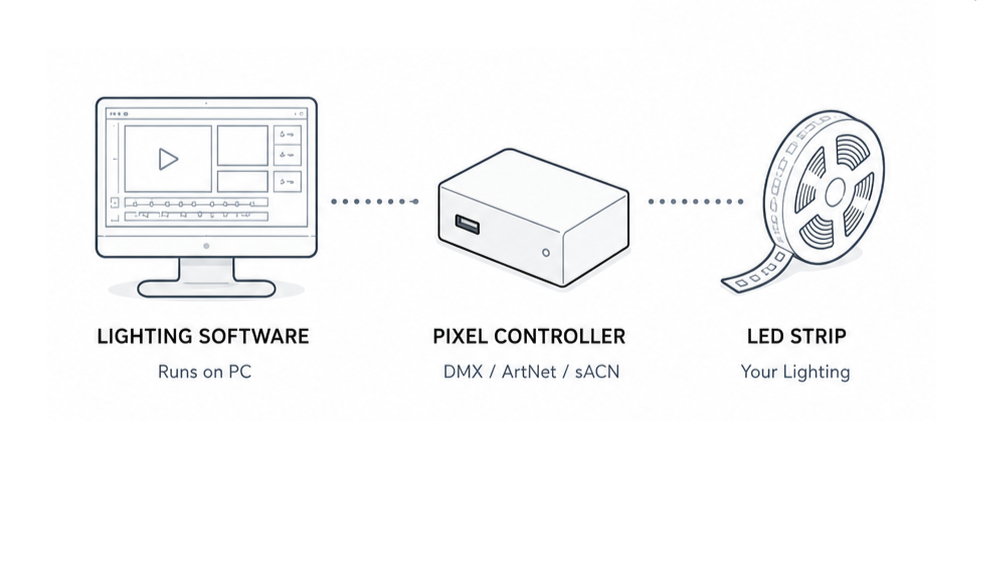

Usual ArtNet DMX setup with a dedicated PC

Pixout standalone

  • Reliability: embedded controller with watchdog — no PC needed
  • Environment: IP67 outdoor enclosure (S-100) or indoor rackmount (I-100, D-100)
  • Cost: one-time licence, no annual fees — universe upgrades unlock by key
  • Maintenance: automatic OTA updates outside show hours, ready in minutes
  • Control: web panel, iOS/Android app, REST API

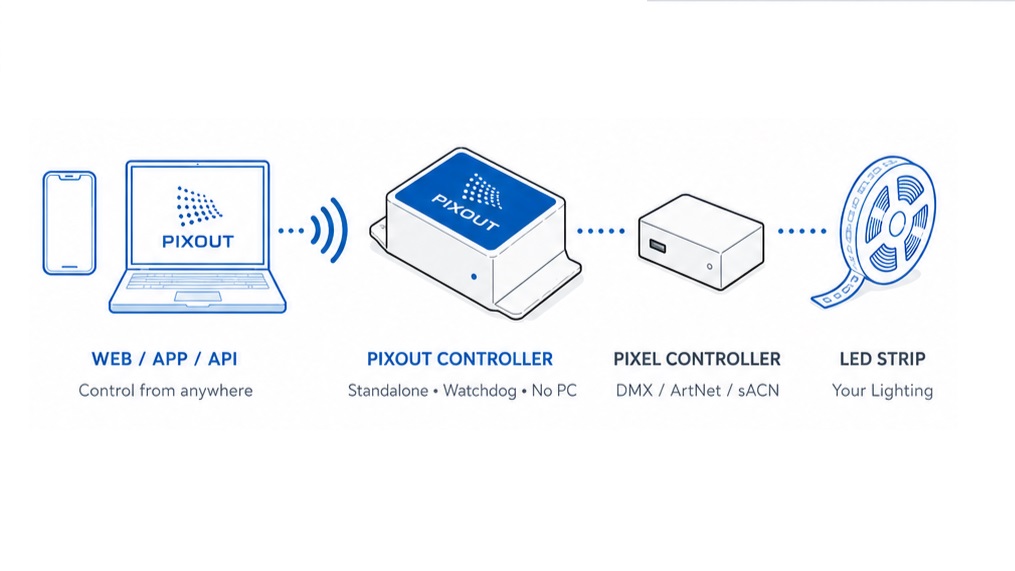

Pixout ArtNet DMX remote recording setup

Compatibility

Works with your favourite tools

GrandMA 2/3 MADRIX Mad Mapper Enttec LED Mapper Chamsys MagicQ Resolume Arena ArKaos Any ArtNet source

Compatible with any software or hardware that supports ArtNet broadcast or unicast output.

Models

Choose your configuration

Three hardware options — from compact outdoor installations to 19″ rack-mount setups.

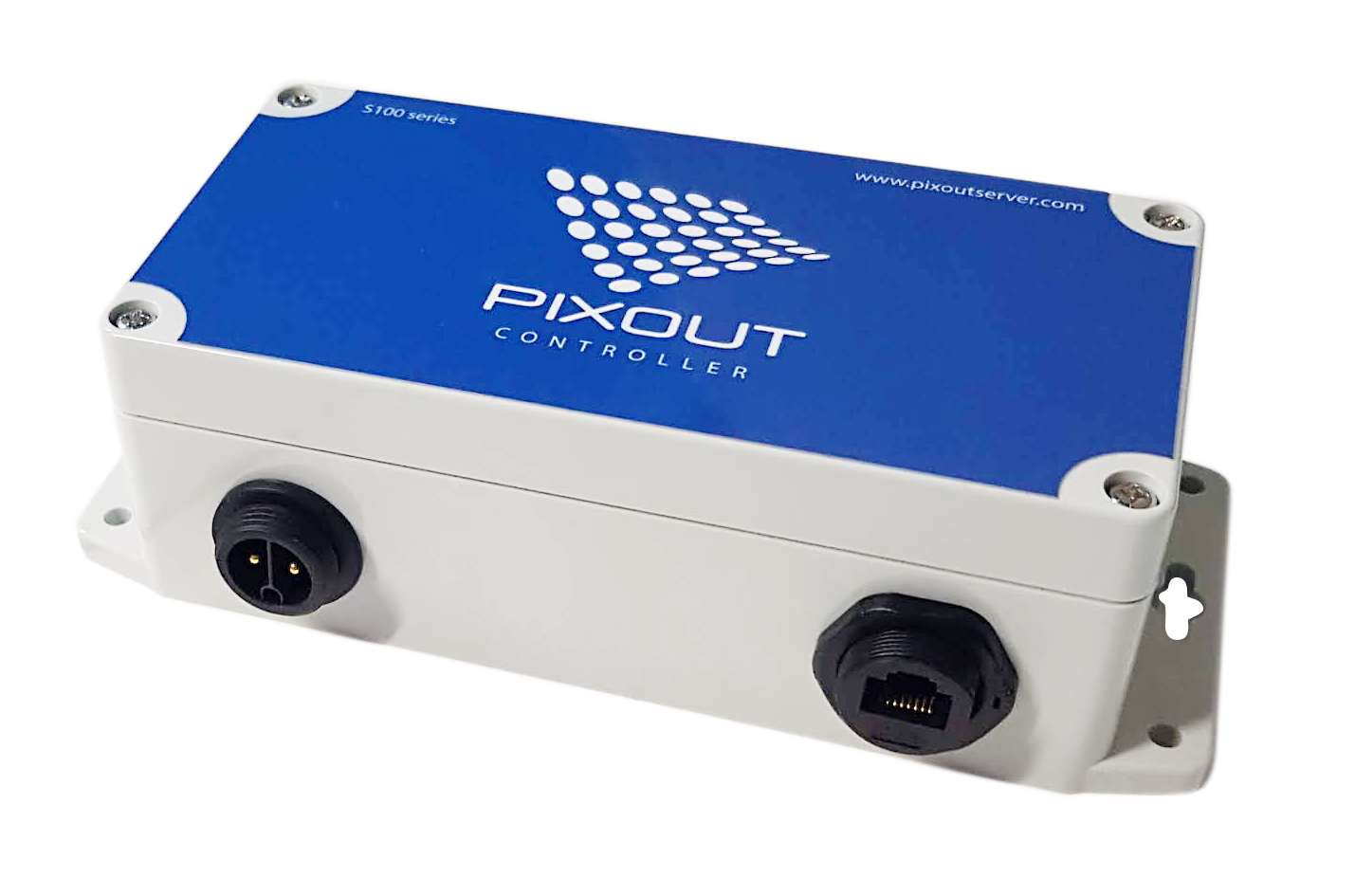

Pixout S-100

S-100

Outdoor

from €344

Compact IP67 outdoor controller with up to 64 ArtNet universes. External 12V PSU. Perfect for small- to mid-size installations.

Wi-Fi
Bluetooth

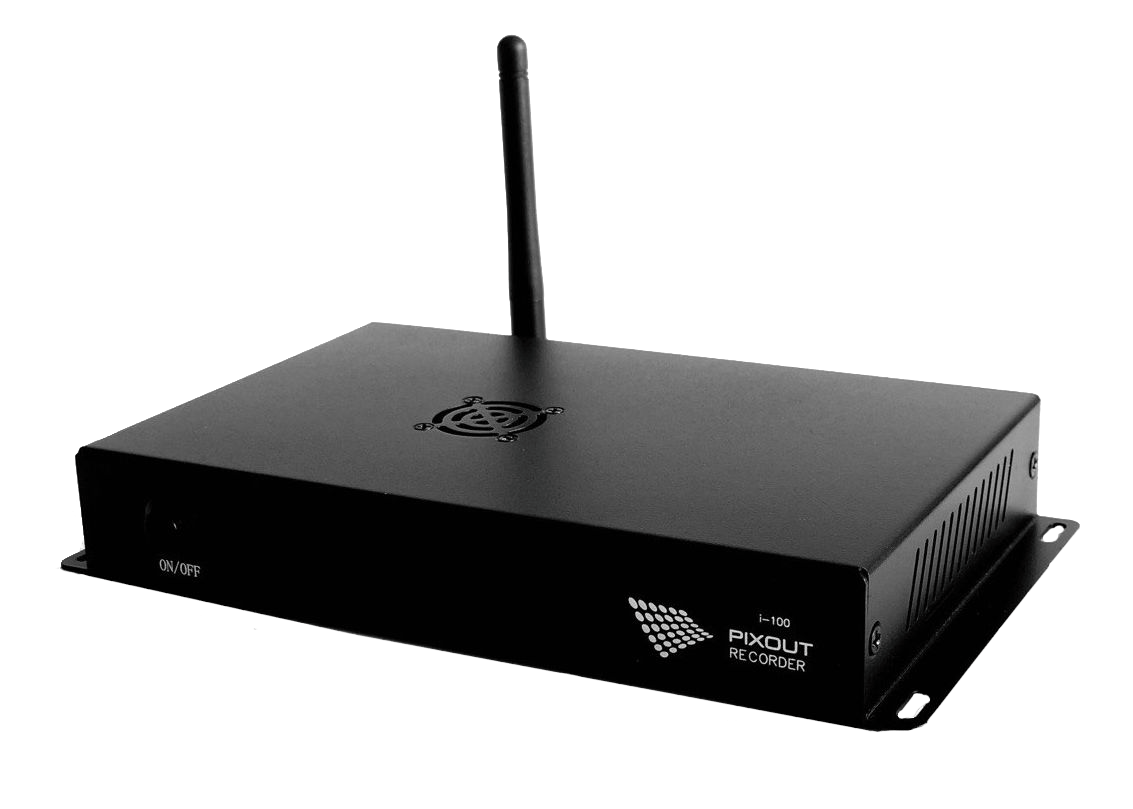

Pixout I-100

I-100

Indoor

from €304

Indoor rackmount (optional 19″) with front-panel LED indicators, RTC and 12V PSU (EU/US). Ideal for server rooms and permanent installations.

Wi-Fi
Bluetooth
RTC
Pixout D-100

D-100

Indoor · Direct DMX

from €389

Indoor controller with four native DMX512 outputs and RTC — replace a rack of ArtNet-to-DMX nodes with one unit. Ideal for venues without network cabling and legacy fixture setups.

Wi-Fi
Bluetooth
RTC
DMX

Specifications

Hardware

Engineered for 24/7 operation — from outdoor façades to indoor server racks.

Recording

ArtNet DMX recorder & playback

Universes

Up to 64 ArtNet universes (license-key upgradable)

Frame rate

30 fps recording & playback

D-100

Protocols

Art-Net 4 · DMX512-A

Storage

SD card · up to 8 GB of cues

Playback

Live brightness & speed control

Cues

Grouping · 60 min+ cues · unlimited cue lists

S-100

Enclosure

IP67 outdoor enclosure

I-100D-100

19″ rack option

Indoor rack-mountable chassis

Power

12V DC across all models (110–240V AC adapter included)

I-100D-100

RTC

Built-in real-time clock

Warranty

2 years standard · extendable on request

Customization

Universe upgrades · OEM · DIY variant

Specifications

Software

Web-based admin, mobile companion app and a REST API ready for show control integrations.

Transmission

Broadcast & Unicast (ArtPoll / Manual)

Scheduling

Built-in time scheduler — daily & weekly

Triggering

ArtTrigger · ArtNet DMX · GPIO · MIDI · UDP

Integration

HTTP REST API for 3rd-party systems

Admin panel

Web-based admin & end-user interface

OTA updates

Automatic over-the-air firmware delivery

Mobile app

iOS & Android companion for on-site control

Ethernet

RJ45 wired networking

Wireless

Wi-Fi for setup & remote control

Pricing

Transparent pricing

Pay only for the universes you need today — grow later with a license-key upgrade, no hardware swap.

S-100

Outdoor

IP67 enclosure · 12V

  • Entry · 1 universe €344
  • Popular · 16 universes €664
  • Max · 64 universes €1,197
Request quote
Best seller

I-100

Indoor · RTC

Optional 19″ rack · 12V

  • Entry · 1 universe €304
  • Popular · 16 universes €624
  • Max · 64 universes €1,157
Request quote

D-100

Direct DMX

Indoor · 4× DMX512 outputs · RTC · 12V

  • Entry · 1 universe €389
  • 2 universes €458
  • 4 universes €571

8u+ available on request.

Request quote

Software-only license

Bring your own Raspberry Pi or mini-PC

from €104

Universe expansion

Add universes later — no hardware swap

from €40

Request the full MSRP pricelist (all universe tiers + accessories + services)

B2B program

Volume discounts up to 25%

All B2B accounts get an automatic 15% discount. Your tier grows with your 12-month cumulative spend.

Apply for a B2B account →

15%

Tier 1 · automatic

18%

Tier 2 · €5k/yr

20%

Tier 3 · €10k/yr

25%

Tier 4 · €15k/yr

  • All prices are MSRP in EUR, exclusive of VAT and shipping.
  • Pricing tier discounts do not apply to expansion licenses.
  • Prices subject to change without notice. Contact sales for the current full pricelist.

Videos

See it in action

FAQ

Frequently Asked Questions

How can I pay for your products?
We accept credit and debit cards online via Stripe. B2B customers can also pay by bank transfer / invoice — contact sales@pixout.lighting.
What shipping types are available?
Standard internal shipping and Express Shipping (TNT, DHL, UPS). Free standard shipping is available for selected items.
Is VAT included in the price?
VAT is not included since most of our clients are companies. For individual purchases, drop us a line and we'll sort out a final price for you.
Is there a Windows-based software available?
Our software is web-based — use it with any modern browser on Windows, Linux, macOS, or iOS. Control Pixout from the web admin panel and make ArtNet recordings.
Can Pixout accept ArtNet data from my controller (GrandMA3 / MADRIX)?
Yes, if your controller supports ArtNet output. Tested with GrandMA (2/3), MADRIX, Mad Mapper, Enttec LED Mapper, Chamsys MagicQ, Resolume Arena, ArKaos, and others.
Can I buy a Pixout controller for ArtNet output only?
Yes, the default configuration works with ArtNet out of the box.
Can Pixout Controller output to WS2812b LED strips?
Sending ArtNet directly to WS2812b via SPI is not available yet. The hardware supports SPI, but this feature is not production-ready. Use ArtNet-to-WS281x converters for this purpose.
What's the difference between an ArtNet recorder and a media server?
A media server generates content live and needs a PC running 24/7. An ArtNet recorder like Pixout captures the finished DMX output once and plays it back from internal storage — no PC, no licence renewals, no crashes during a show.
How many fixtures can 64 universes drive?
64 universes equals 32,768 DMX channels — roughly 10,900 RGB pixels or 6,500 RGBW pixels. Plenty for stadium scoreboards, building façades and large architectural installations.
Can I trigger cues from a show control system?
Yes. Pixout accepts triggers over GPIO, MIDI, UDP, ArtTrigger and HTTP REST — integrate with Crestron, AMX, Q-SYS, Medialon or any system that can fire a URL or send a UDP packet.

Contact

Enquire about the Pixout Recorder

Connect with our team to discuss your project needs. We'll tailor a solution and get back to you with pricing within 24 hours.

sales@pixout.lighting

24/5 support for all clients

Reply within 24h · Used in 30+ countries · 2-year warranty

From €304

Pixout ArtNet Recorder

Contact sales
